Dig2Go

$27.00 – $65.00

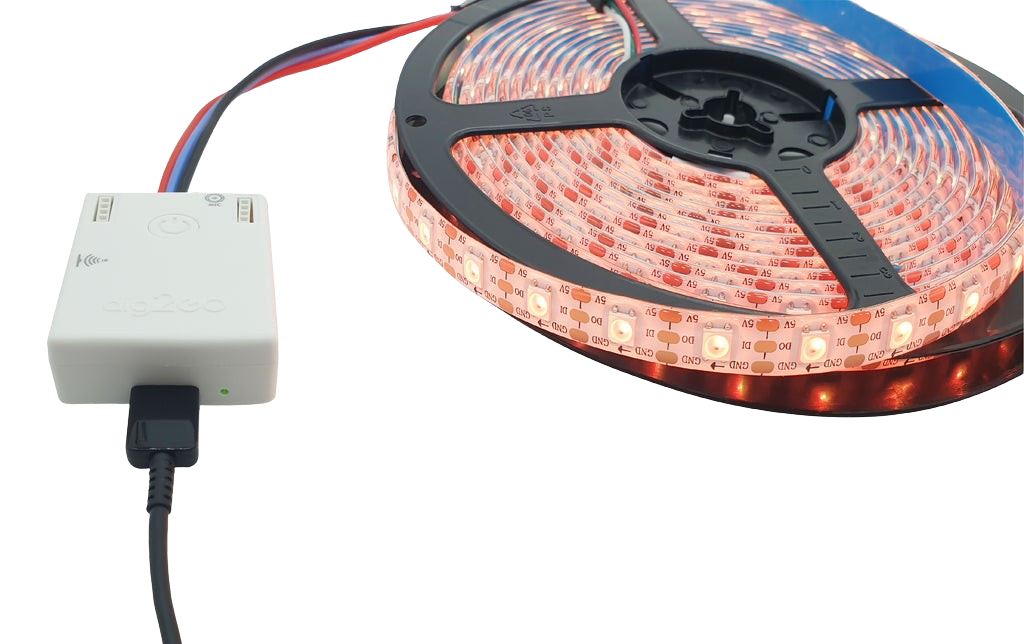

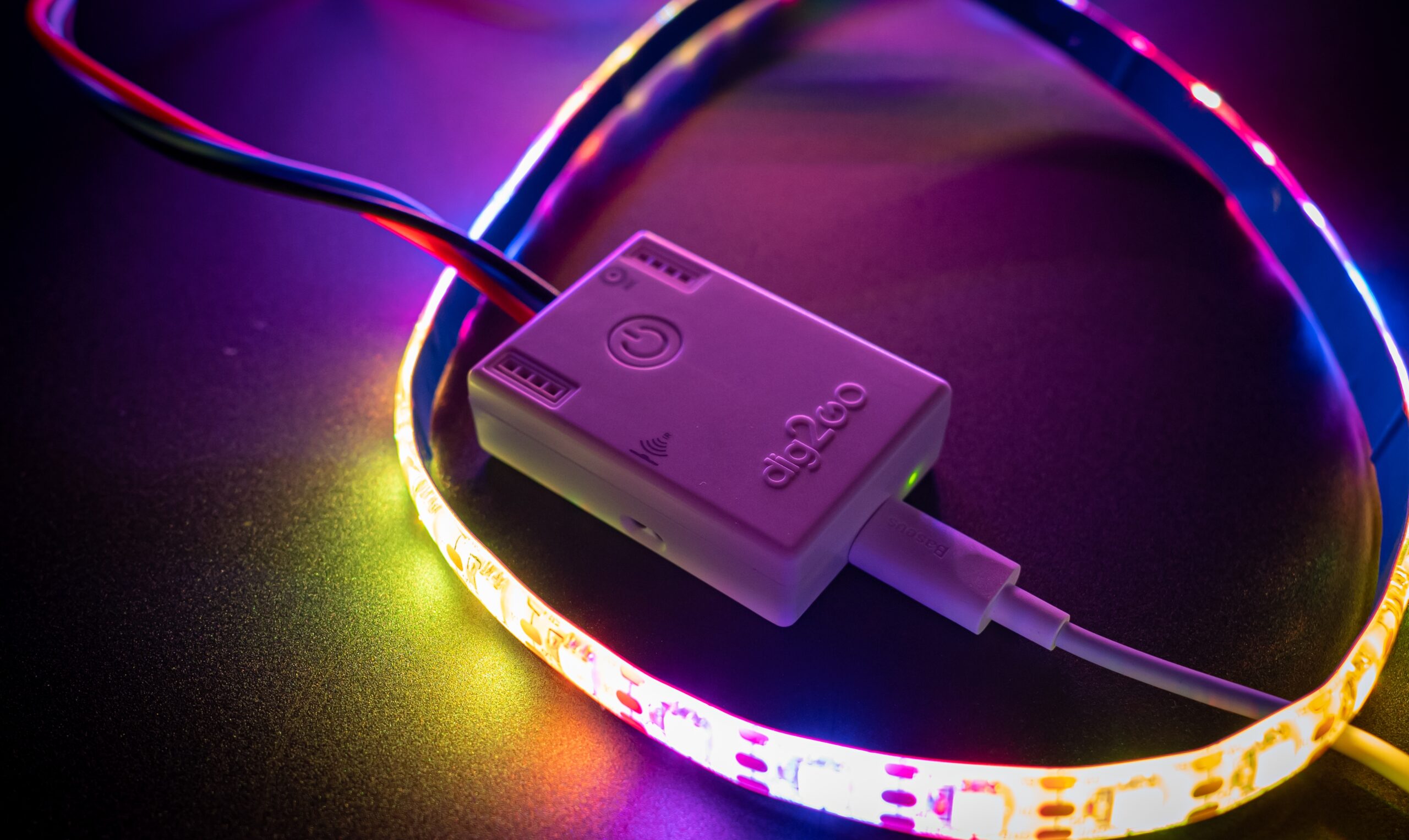

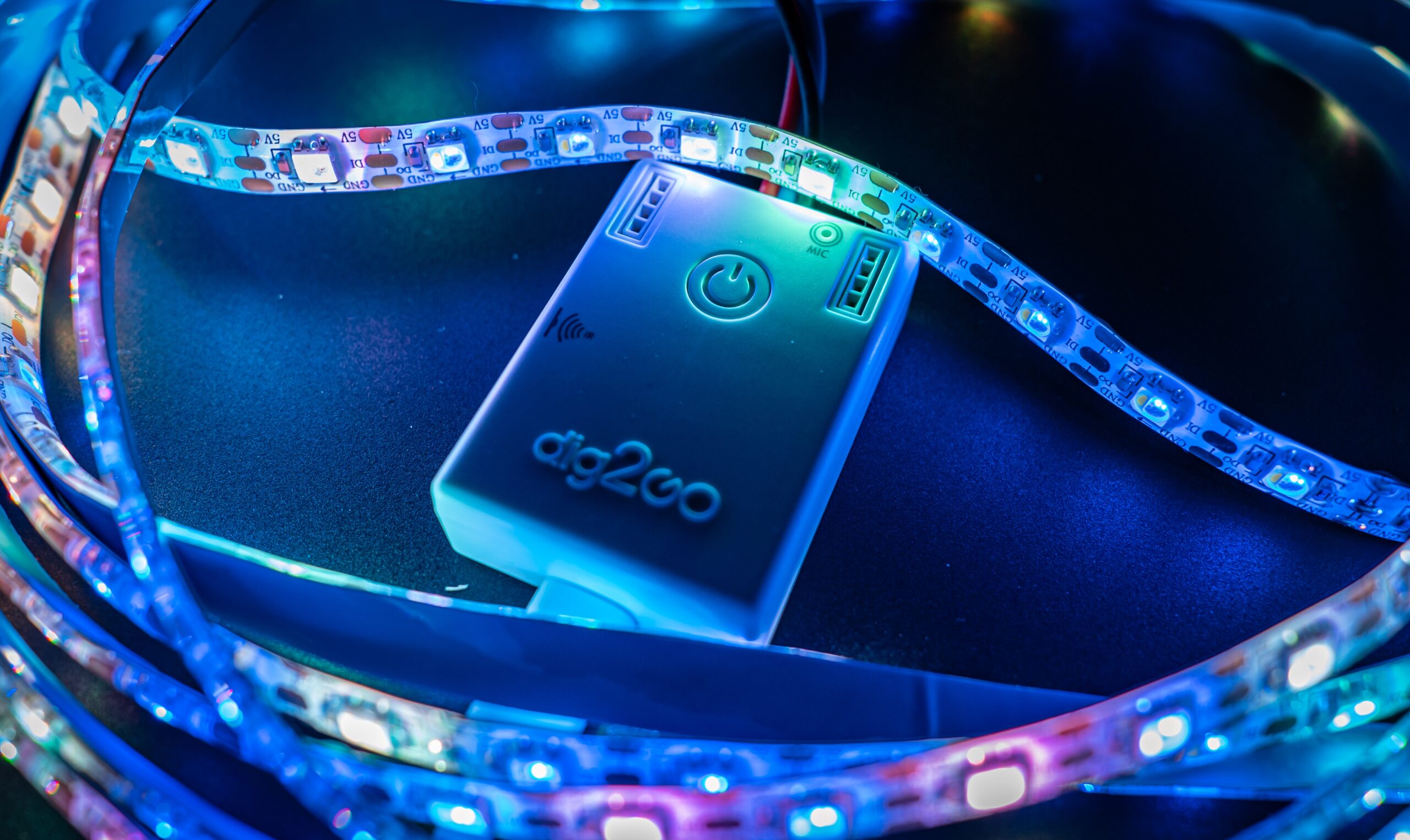

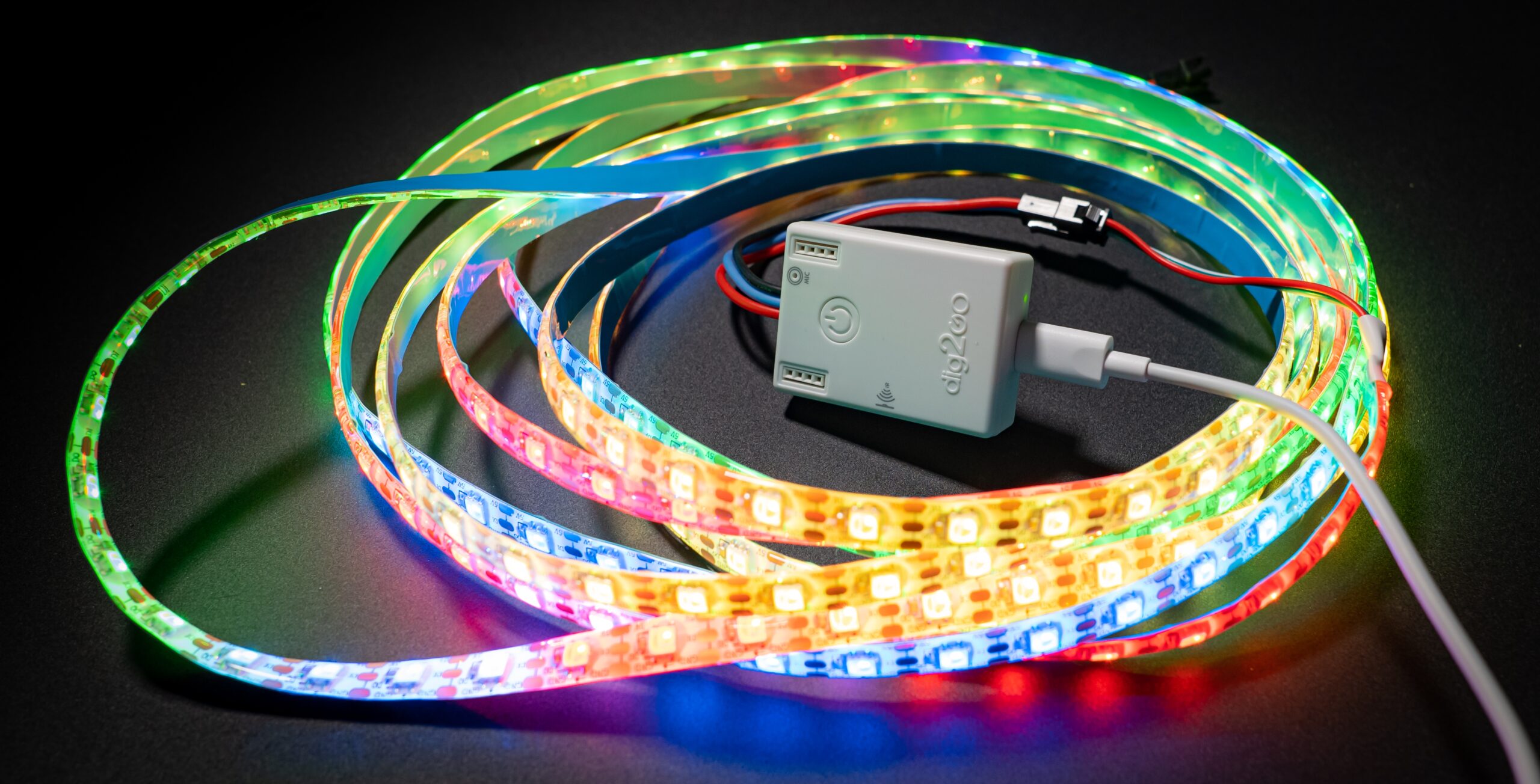

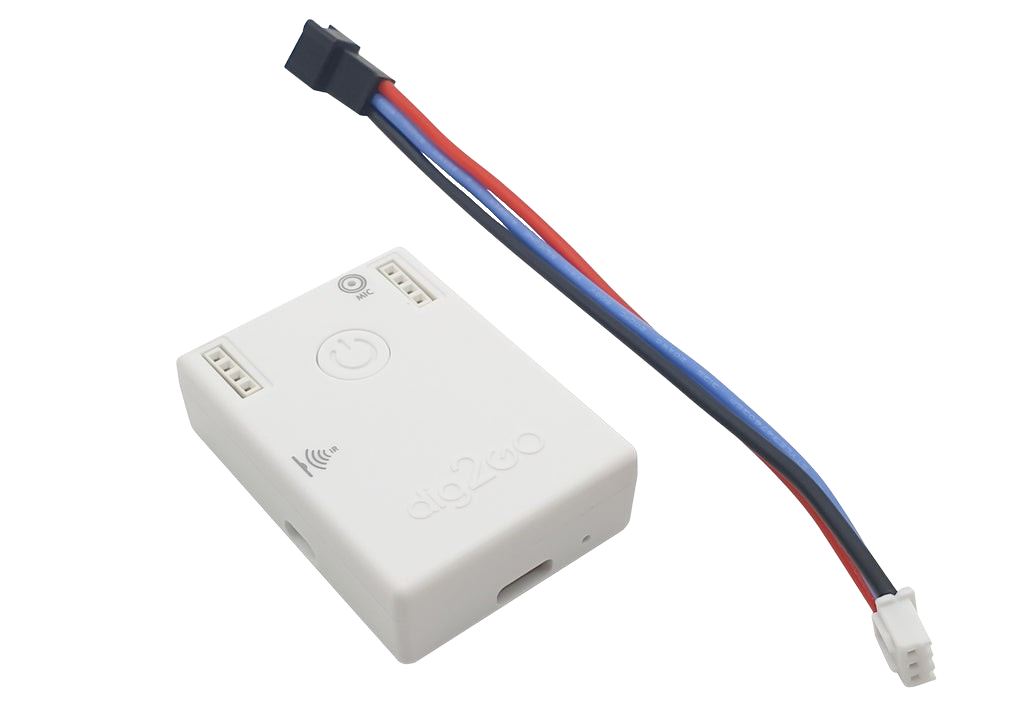

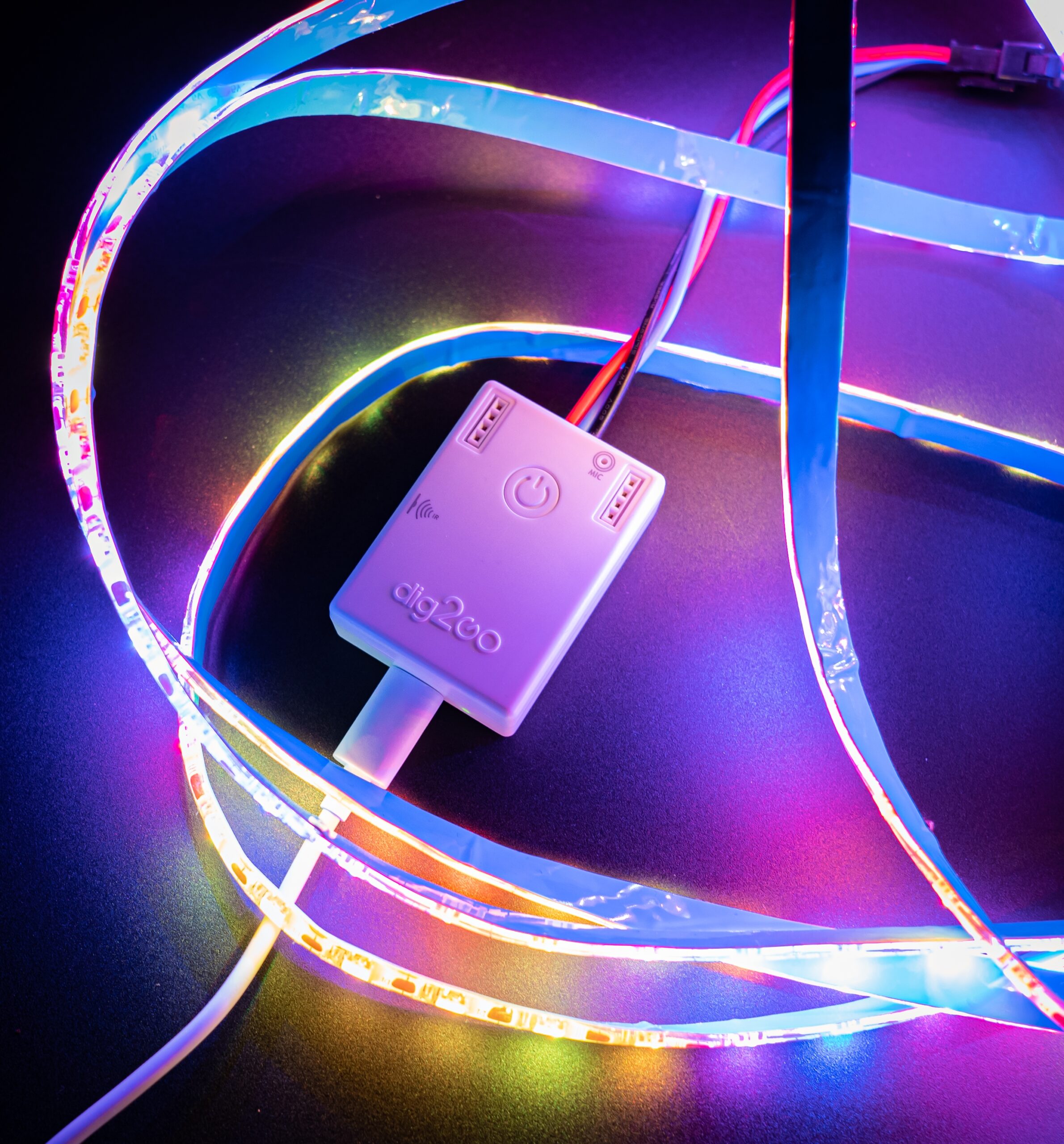

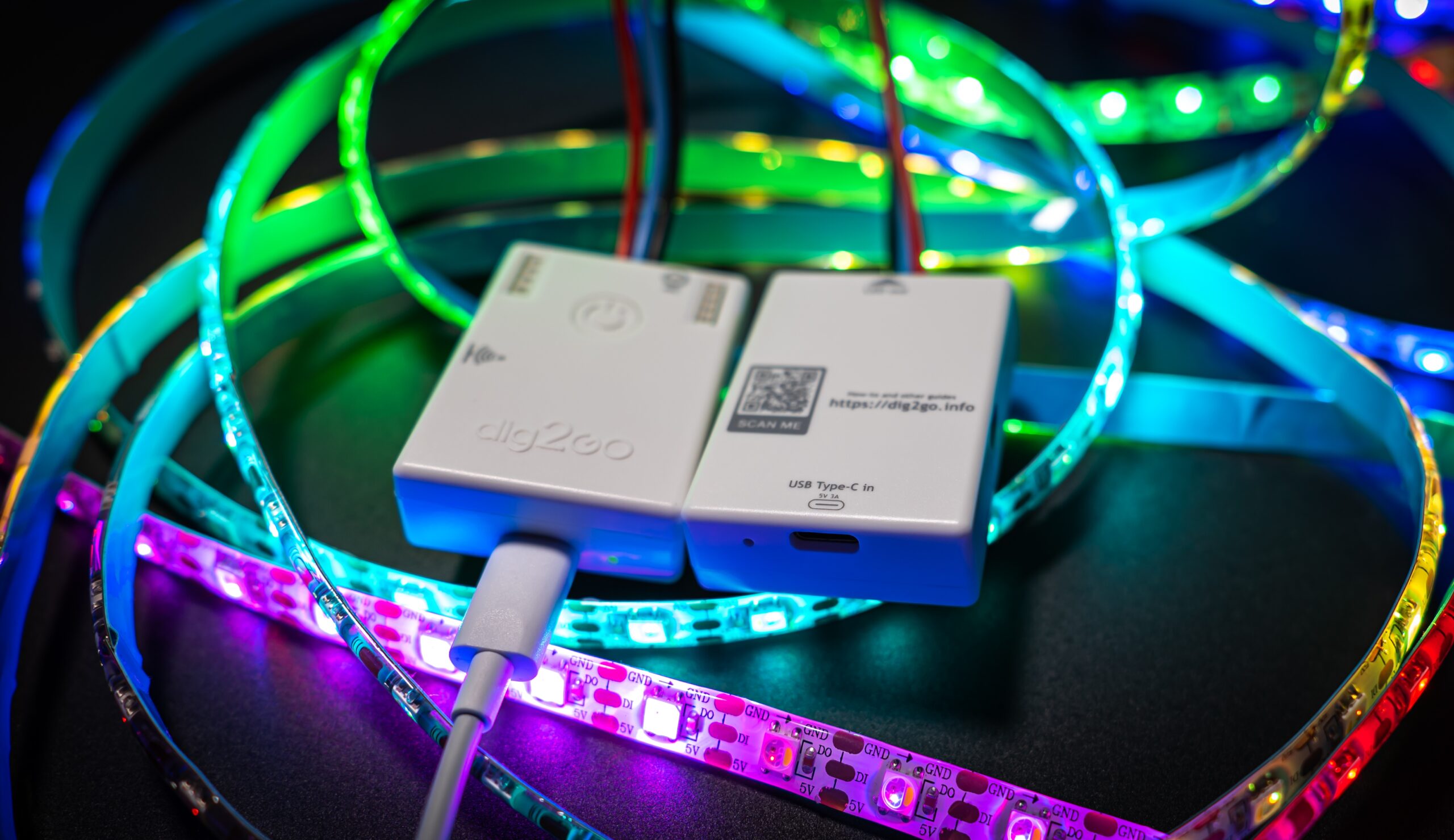

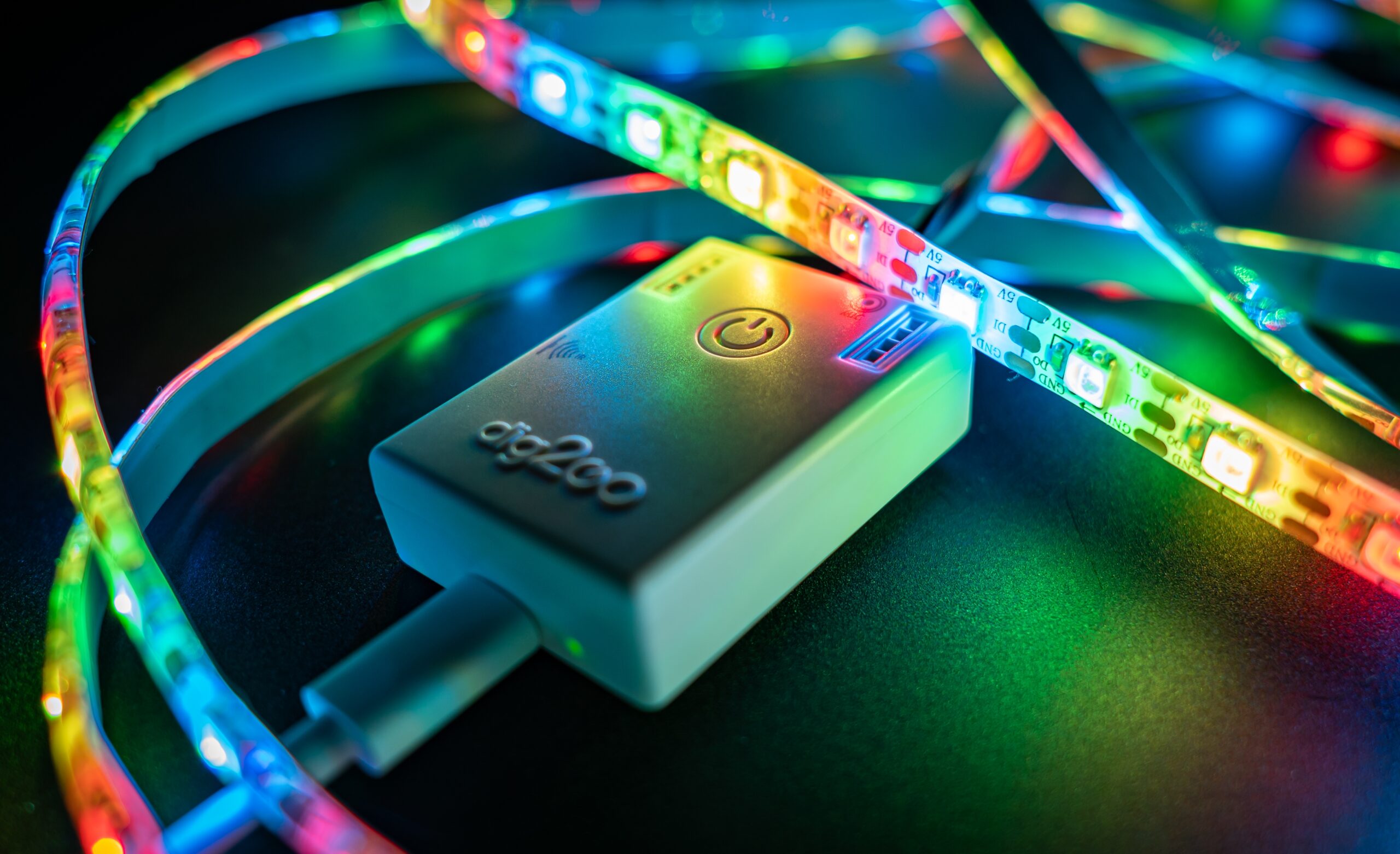

The QuinLED-Dig2go is an easy to use small form factor addressable LED controller.

  • USB-C connector (power, programming)
  • Built-in digital Microphone
  • Comes with Sound Reactive WLED Installed
  • On/Off button integrated into case
  • IR receiver for generic IR remotes
  • Expandable: 2x 4 female headers
    • 5v, 3v3, 2x GND
    • 4x GPIO (including I2C)
    • Suited for 5v ws2812b, 5v sk6812 (RGB and RGBW)
      • Strips or Pixels

5v only, 3 amp max (~300 LEDs)

SKU: N/A

Description

The QuinLED-Dig2go is an easy to use small form factor addressable LED controller. It’s meant as an small setup or entry level controller for RGB-IC/Addressable LEDs being fully plug and play, no screws or anything like that! Just plug-in USB-C power (like your phone uses) and a set of Addressable LEDs and it’s up and running!

Other unique features include:

  • Very small form factor in custom plastic case
  • ESP32 with 4MB of flash memory
  • Level-shifted 5v LED data output
  • Built-in digital microphone
  • Comes with Sound Reactive WLED installed
  • On/Off button integrated into case
  • IR receiver for generic IR remotes
  • 2x 4 female headers for optional expandability
    • 5v, 3v3, 2x GND
    • 4x GPIO (including I2C)
  • Suited for generic 5v ws2812b, 5v sk6812 (RGB and RGBW)
    • Both strip or pixels
  • For more technical details please see the specifications article!

Additional information

Weight 1 oz
Dimensions 2 × 2 × 1 in
