Dig-Quad: Multi Channel Wifi RGB LED controller

(3 customer reviews)

$40.50$50.50

The Dig-Quad can send different color and effect data to 4 different strings of LEDs (using WLED 0.12 or newer)

It also makes 6 GPIO pins available through pin headers. These can be used to add buttons, relays, other sensors, I2C bus, OLED display, or just about anything else you can dream up. It even breaks out the A0 pin which could be used for Audio Reactive LEDs.

Comes with a QuinLED-ESP32 Pre-Flashed, Pre-Soldered, and Tested!

    • Choose one of 3 versions:

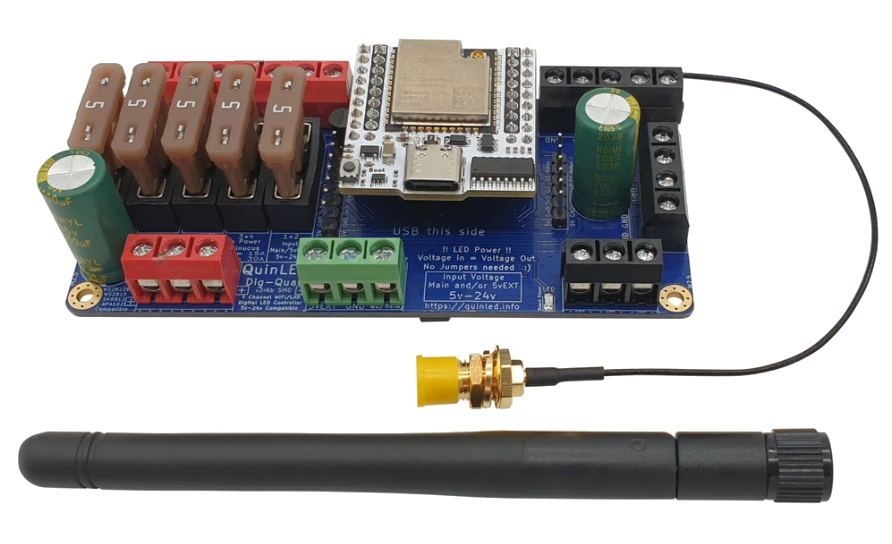

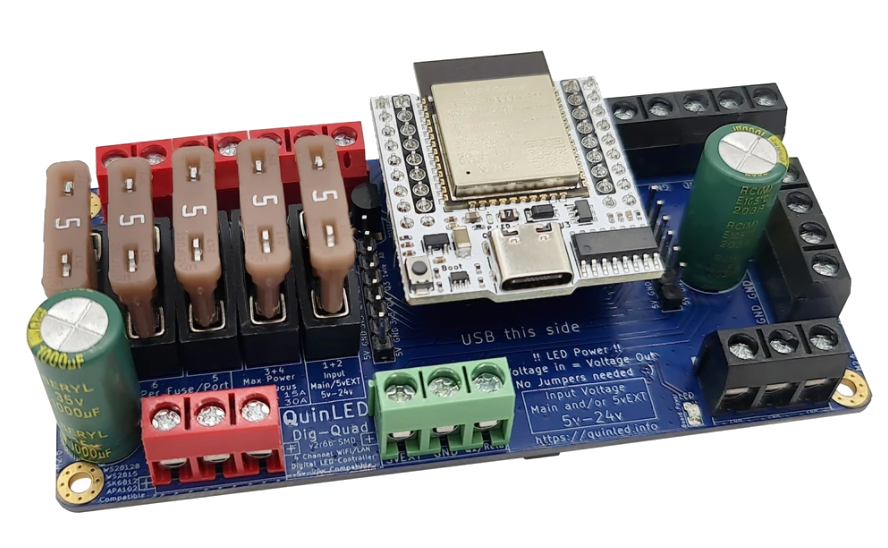

      • On-Board Antenna
      • External Antenna

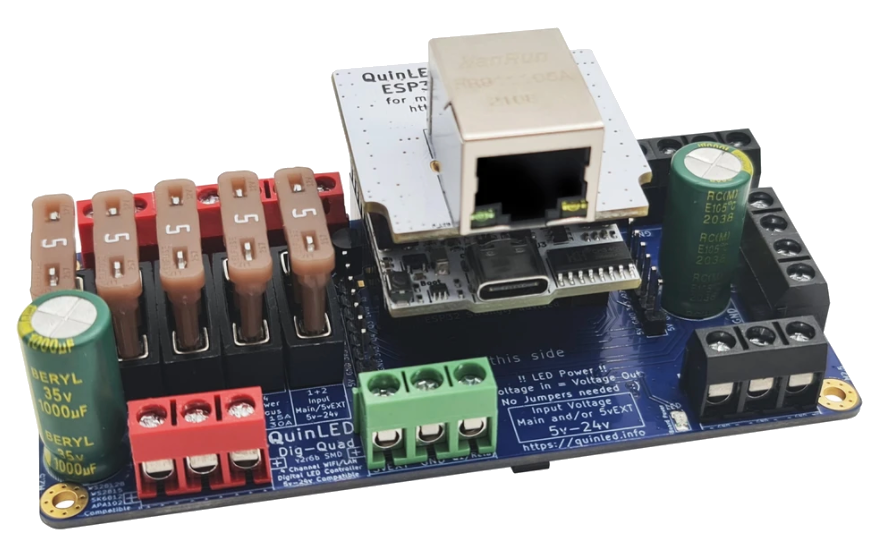

      • Ethernet Add-on Board

(I’m not shipping to Canada anymore. The International Store is serving everyone outside the US now

Clear
SKU: N/A

Description

Max order is 3.  Please don’t order more than 3 at a time.

What’s new in Version 3?

  • Larger Power Input Terminals
  • Comes with the custom QuinLED-ESP32 by default!
    • Choice between 3 versions

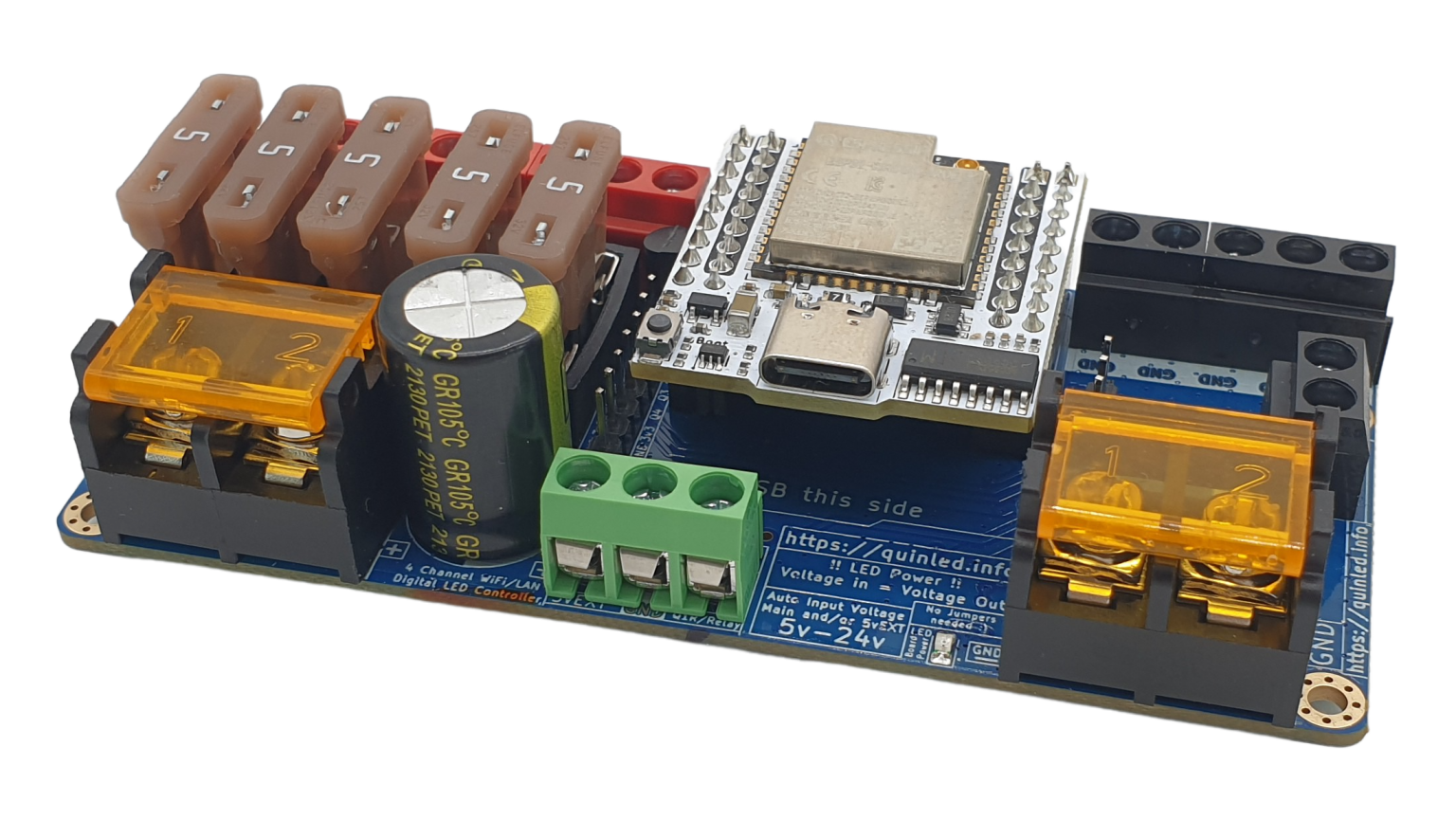

      • On-Board Antenna
      • External Antenna

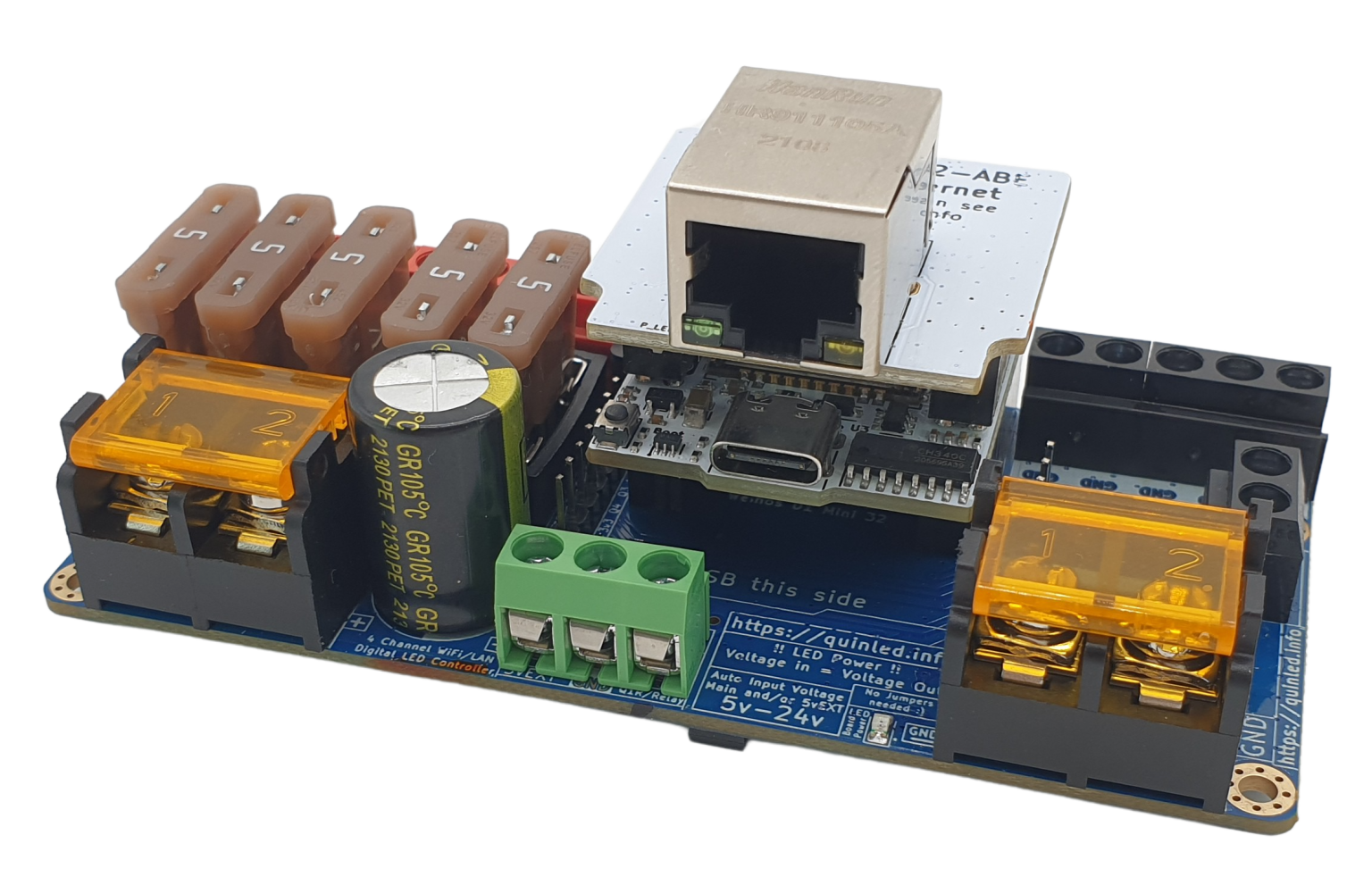

      • On-Board Antenna + Ethernet Add-on Board
  • Four channel controller!
  • Custom DC-DC circuit onboard
    • Auto 5v-24v voltage input circuit (no more jumper!)
      • Enhanced LED data voltage at an always steady 5.1v, no matter the input voltage
    • Auto 5vEXT with 5v-24v compatibility
      • No jumpers again, fully auto selected
      • 2x pin header near input terminals to provide 5vEXT power
      • Because of the custom DC-DC circuit on the board 5vEXT now accepts 5v-24v input for standby power

The Dig-Quad is the next evolution in Wifi LED Booster Boards from Quindor.  It can send different color and effect data to 4 different strings of LEDs.

It also makes 6 GPIO pins available through pin headers. These can be used to add buttons, relays, other sensors, I2C bus, OLED display, or just about anything else you can dream up. It even breaks out the A0 pin which could be used for Audio Reactive LEDs.

The Dig-Quad is ready for the future!

Devices are available for International Customers HERE

Some info about output pins: HERE

QuinLED-Dig-Quad is part of the QuinLED digital LED controller family and is an ESP32 powered WiFi connected addressable LED (strip) controller.

QuinLED-Dig-Quad is suited for Clocked (Data and Clock pin) and Clockless 5v or 12v Digital LED strips. Using clockless LED strip (such as WS2812b or SK6812) there are 4 independent level-shifted output channels, when using Clockless LED strip (such as APA102/SK9822) you can 2 strips.

Unique features of the QuinLED-Dig-Quad are 7 positive and negative output channels on the board running through 5 fuses (Channel 1&2 and 3&4 each share a fuse) making power injection much easier with all hardware and protection on the single board instead of having to use external components.

DISCLAIMER: This is still a “DIY” project.  The device comes assembled, tested, and loaded with the software, but you are still responsible for knowing how to use it.  I can’t replace your devices if you use it incorrectly and damage it.

WLED is distributed under the MIT License

Copyright (c) 2016 Christian Schwinne

THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE.

Additional information

Weight2.5 oz
Dimensions4 × 2 × 2 in
Model

, ,
