QUINLED-ESP32

$10.00

The new QuinLED-ESP32 is pin compatible with the current Unos and Quads but includes more reliable components than the Mini32.

This first test run does NOT come with pin headers soldered, or WLED pre-flashed. When ordering, please know you will have to do those steps yourself!

Max (2) per customer for this trial batch. Thanks!

Out of stock

Email when stock available



Description

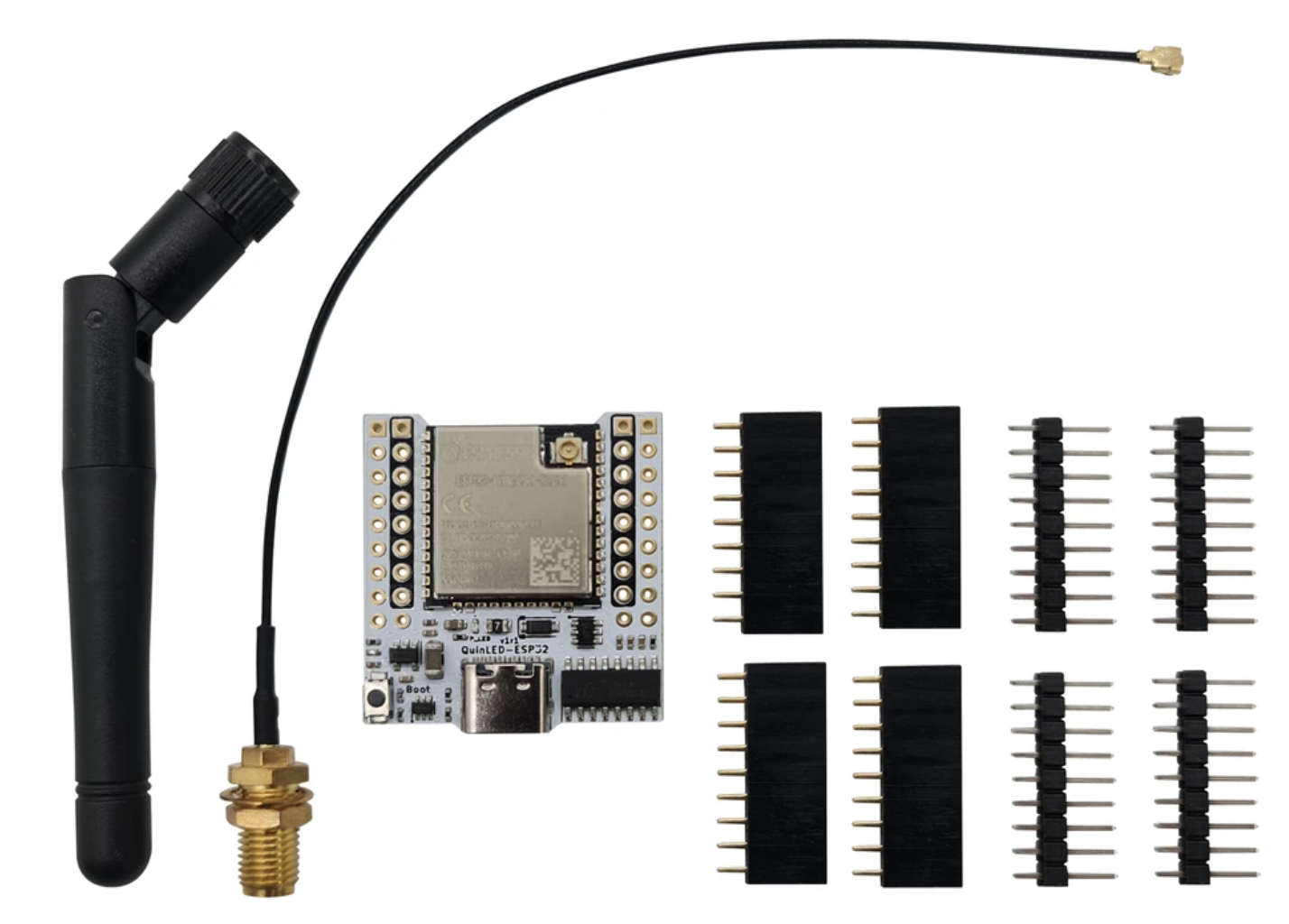

NEW QuinLED-ESP32-AE – Testers Wanted

The DigUno and DigQuad use the D1mini or Mini32 wifi-board form factor. Since starting to sell the Unos and Quads the only recurring issues we’ve had are with the D1mini or Mini32 boards failing.  So, Quindor decided to create his own version of the Mini32. The new QuinLED-ESP32 is pin compatible with the current Unos and Quads but includes more reliable components and has some added features!

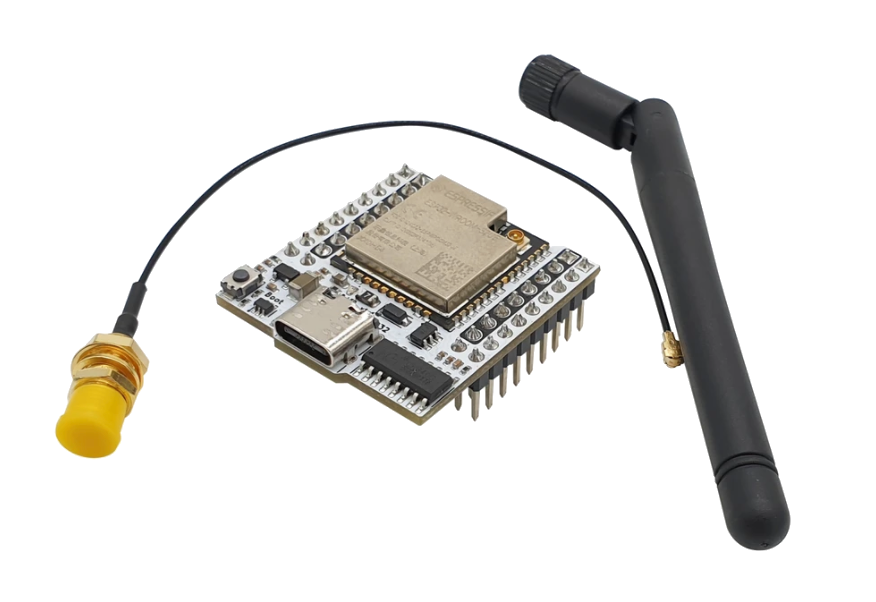

This is the first test run of these QuinLED-ESP32-AE (Antenna External) boards.  Once users of this first batch report back that everything is working well, these boards will replace the ESP32 board being delivered with the QuinLED-Dig-Uno and QuinLED-Dig-Quad! It will also be available to buy separately for upgrade or use in your other projects!

This first run does NOT come with pin headers soldered, or WLED pre-flashed. When ordering, please know you will have to do those steps yourself!

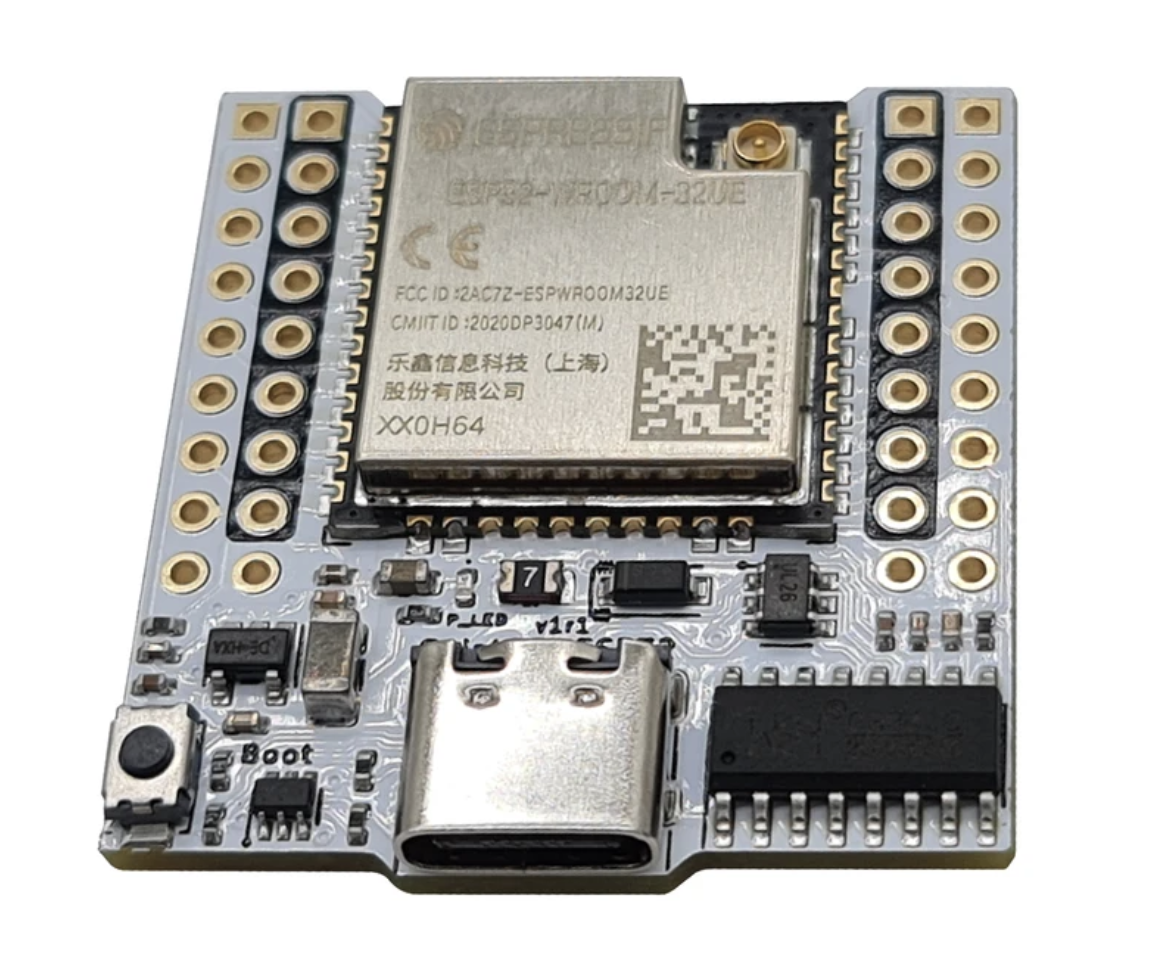

Unique features of the QuinLED-ESP32 development board:

  • Using ESP32 WROOM32 module version “E”
    • Using newest ESP32-D0WD-V3 chip
      • Enhanced (WiFi) stability and security (vs previous versions)
      • Lower power usage (vs previous versions)
  • Enhanced onboard capacitors
    • Better ESP32 stability (especially on USB)
  • USB-C host port
    • USB ESD protection chip
    • Back feed protection diode
  • 5v 750mA max PTC fuse
    • Protect board from too high power flowing through it killing it slowly
      • (Do NOT run LEDs powered from your ESP32 development board!)
    • 5v only (do not exceed 6v)
  • Strong 800mA onboard linear 3.3v converter
  • Onboard CH340C USB-to-serial chip
  • Enhanced pin-out
  • Small form factor
  • Very dim power LED
    • No more development board power LED lighting up your room 😉

Additional information

Weight1.5 oz
Dimensions2 × 2 × 1 in
